For U-he Diva we have AIKO Theme and I’m proud of it. But I also love another premium skin; Volta.

But recently the author seems to be M.I.A. and the skin is now not compatible with new Diva browser.

Time to DIY

Then, now is the time to utilize U-he’s super-flexible theming script system! Just replace some old code with new one and it’ll work fine. I’ll show you how to do it. Make Volta great again!

1. Delete Old Lines

Firstly, open “Volta GUI/Scripts/Diva.txt” with your text editor. Any app can open it since it’s just a normal text file.

you should make backup and do everything at your own risk!

After open, find the old preset section in the script. Search the line starting with following:

CONTROL type=’PresetSelector’ name=’PresetSelector 11272′

This is the very first line you have to delete. It’s in about line 7120 so you definitely need to use search function in your editor.

Select lines until you see following one:

PROPERTY control=’Label 11351′ name=’metaDisplay’ id=’0′ value=’yes’

This is the last line you delete. So in total you’ll have to delete about 74 lines.
You can instead “comment out” these line by enclosing them with /* */ (just like css).

If you’d like to confirm that it’s successful, save it and open Diva GUI. At this moment you’ll see the empty preset browser.

Everything is OK.

2. Insert new codes

Now, insert the following code to where you deleted (or commented out) lines.

/*v1.4 Tag Browser Patchwork by plugmon.jp*/
COLOUR name='BrowserColor_5' rgba='fafafa55'
COLOUR name='BrowserColor_A' rgba='fafafaAA'
COLOUR name='PM_Search_BG' rgba='352D2Bff'
COLOUR name='PB_ScanBG_off' rgba='40'
COLOUR name='PB_ScanTXT_off' rgba='272c30ff'
COLOUR name='PB_ScanBG_on' rgba='92352eff'
COLOUR name='PB_ScanTXT_on' rgba='fff3e5ff'
COLOUR name='PB_ScanPROG_on' rgba='ffa26fc0'
COLOUR name='TagBG_OFF' rgba='444444aa'
COLOUR name='TagBG_OFF_ALT' rgba='313131aa'
COLOUR name='TagBG_ON' rgba='F6524A77'
COLOUR name='TagText_ON' rgba='ff3311FF'
COLOUR name='TagText_OFF' rgba='ffffff66'
COLOUR name='PIV-TitleText' rgba='9f3533ff'

CONTROL type='PresetBrowser' name='PatchBrowser' bounds='10.00 35.00 1190.00 600.00' parent='Pane WindowBlock' layerMask='1'
PROPERTY control='PatchBrowser' name='colours' id='0' value='none'
PROPERTY control='PatchBrowser' name='colours' id='1' value='none'
PROPERTY control='PatchBrowser' name='colours' id='2' value='PB_ScanBG_off'
PROPERTY control='PatchBrowser' name='colours' id='3' value='none'
PROPERTY control='PatchBrowser' name='colours' id='4' value='PB_ScanTXT_off'
PROPERTY control='PatchBrowser' name='colours' id='5' value='none'
PROPERTY control='PatchBrowser' name='colours' id='6' value='PB_ScanBG_on'
PROPERTY control='PatchBrowser' name='colours' id='7' value='none'
PROPERTY control='PatchBrowser' name='colours' id='8' value='PB_ScanTXT_on'
PROPERTY control='PatchBrowser' name='colours' id='9' value='PB_ScanPROG_on'
PROPERTY control='PatchBrowser' name='graphics' id='0' value='none'

CONTROL type='Layout-Stack' name='_PresetManagerStack' bounds='0.00 0.00 210.00 550.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_PresetManagerStack' name='colours' id='0' value='none'
PROPERTY control='_PresetManagerStack' name='colours' id='1' value='none'
PROPERTY control='_PresetManagerStack' name='graphics' id='0' value='none'

CONTROL type='Layout-Stack' name='_PresetManagerHeaderStack' bounds='2.00 0.00 210.00 32.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_PresetManagerHeaderStack' name='colours' id='0' value='none'
PROPERTY control='_PresetManagerHeaderStack' name='colours' id='1' value='none'
PROPERTY control='_PresetManagerHeaderStack' name='graphics' id='0' value='none'

CONTROL type='Button On-Off' name='_DirectoryButton' bounds='18.00 10.00 98.00 21.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_DirectoryButton' name='colours' id='0' value='invisible'
PROPERTY control='_DirectoryButton' name='colours' id='1' value='none'
PROPERTY control='_DirectoryButton' name='colours' id='2' value='invisible'
PROPERTY control='_DirectoryButton' name='colours' id='3' value='none'
PROPERTY control='_DirectoryButton' name='colours' id='4' value='none'
PROPERTY control='_DirectoryButton' name='graphics' id='0' value='none'
PROPERTY control='_DirectoryButton' name='graphics' id='1' value='Tab-PBDirect'
PROPERTY control='_DirectoryButton' name='graphics' id='2' value='none'
PROPERTY control='_DirectoryButton' name='graphics' id='3' value='none'

CONTROL type='Button On-Off' name='_SearchButton' bounds='116.00 10.00 98.00 21.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_SearchButton' name='colours' id='0' value='invisible'
PROPERTY control='_SearchButton' name='colours' id='1' value='none'
PROPERTY control='_SearchButton' name='colours' id='2' value='invisible'
PROPERTY control='_SearchButton' name='colours' id='3' value='none'
PROPERTY control='_SearchButton' name='colours' id='4' value='none'
PROPERTY control='_SearchButton' name='graphics' id='0' value='none'
PROPERTY control='_SearchButton' name='graphics' id='1' value='Tab-PBTags'
PROPERTY control='_SearchButton' name='graphics' id='2' value='none'
PROPERTY control='_SearchButton' name='graphics' id='3' value='none'

PROPERTY control='_DirectoryButton' name='ActionID' id='1' value='70625344'
PROPERTY control='_SearchButton' name='ActionID' id='1' value='70625353'

CONTROL type='Layout-Stack' name='_SearchStack' bounds='0.00 32.00 228.00 32.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_SearchStack' name='colours' id='0' value='none'
PROPERTY control='_SearchStack' name='colours' id='1' value='none'
PROPERTY control='_SearchStack' name='graphics' id='0' value='none'

CONTROL type='TextInput' name='_SearchTextInput' bounds='0.00 6.00 210.00 24.00' parent='_SearchStack' layerMask='ffffffff'
PROPERTY control='_SearchTextInput' name='colours' id='0' value='PM_Search_BG'
PROPERTY control='_SearchTextInput' name='colours' id='1' value='PM_Search_BG'
PROPERTY control='_SearchTextInput' name='colours' id='2' value='grey'
PROPERTY control='_SearchTextInput' name='colours' id='3' value='BrowserColor_5'
PROPERTY control='_SearchTextInput' name='colours' id='4' value='trans white'
PROPERTY control='_SearchTextInput' name='colours' id='5' value='black'
PROPERTY control='_SearchTextInput' name='colours' id='6' value='white'
PROPERTY control='_SearchTextInput' name='graphics' id='0' value='none'
PROPERTY control='_SearchTextInput' name='graphics' id='1' value='none'

CONTROL type='Layout-Stack' name='_DisplayRootStack' bounds='2.00 36.00 195.00 32.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_DisplayRootStack' name='colours' id='0' value='none'
PROPERTY control='_DisplayRootStack' name='colours' id='1' value='none'
PROPERTY control='_DisplayRootStack' name='graphics' id='0' value='none'

CONTROL type='Button On-Off' name='_FolderUpButton' bounds='0.00 0.00 22.00 16.00' parent='_DisplayRootStack' layerMask='ffffffff'
PROPERTY control='_FolderUpButton' name='colours' id='0' value='none'
PROPERTY control='_FolderUpButton' name='colours' id='1' value='none'
PROPERTY control='_FolderUpButton' name='colours' id='2' value='none'
PROPERTY control='_FolderUpButton' name='colours' id='3' value='none'
PROPERTY control='_FolderUpButton' name='colours' id='4' value='none'
PROPERTY control='_FolderUpButton' name='graphics' id='0' value='RS-Up'
PROPERTY control='_FolderUpButton' name='graphics' id='1' value='none'
PROPERTY control='_FolderUpButton' name='graphics' id='2' value='none'
PROPERTY control='_FolderUpButton' name='graphics' id='3' value='none'

CONTROL type='Button On-Off' name='_ClearFolderButton' bounds='22.00 0.00 16.00 16.00' parent='_DisplayRootStack' layerMask='ffffffff'
PROPERTY control='_ClearFolderButton' name='colours' id='0' value='none'
PROPERTY control='_ClearFolderButton' name='colours' id='1' value='none'
PROPERTY control='_ClearFolderButton' name='colours' id='2' value='none'
PROPERTY control='_ClearFolderButton' name='colours' id='3' value='none'
PROPERTY control='_ClearFolderButton' name='colours' id='4' value='none'
PROPERTY control='_ClearFolderButton' name='graphics' id='0' value='RS-Delete'
PROPERTY control='_ClearFolderButton' name='graphics' id='1' value='none'
PROPERTY control='_ClearFolderButton' name='graphics' id='2' value='none'
PROPERTY control='_ClearFolderButton' name='graphics' id='3' value='none'

CONTROL type='Label' name='_DisplayPathLabel' bounds='54.00 0.00 170.00 24.00' parent='_DisplayRootStack' layerMask='ffffffff'
PROPERTY control='_DisplayPathLabel' name='colours' id='0' value='none'
PROPERTY control='_DisplayPathLabel' name='colours' id='1' value='Orange8080'
PROPERTY control='_DisplayPathLabel' name='graphics' id='0' value='none'
PROPERTY control='_DisplayPathLabel' name='labeltext' id='0' value='/'
PROPERTY control='_DisplayPathLabel' name='clickThrough' id='0' value='yes'
PROPERTY control='_DisplayPathLabel' name='FontSize' id='0' value='11.00'

CONTROL type='Layout-Stack' name='_PresetManagerFrameStack' bounds='0.00 40.00 235.00 300.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_PresetManagerFrameStack' name='colours' id='0' value='none'
PROPERTY control='_PresetManagerFrameStack' name='colours' id='1' value='none'
PROPERTY control='_PresetManagerFrameStack' name='graphics' id='0' value='none'

CONTROL type='PresetManager' name='_PresetManagerView' bounds='0.00 0.00 235.00 290.00' parent='_PresetManagerFrameStack' layerMask='ffffffff'
PROPERTY control='_PresetManagerView' name='colours' id='0' value='none'
PROPERTY control='_PresetManagerView' name='colours' id='1' value='grey'
PROPERTY control='_PresetManagerView' name='colours' id='2' value='grey'
PROPERTY control='_PresetManagerView' name='colours' id='3' value='black'
PROPERTY control='_PresetManagerView' name='colours' id='4' value='invisible'
PROPERTY control='_PresetManagerView' name='colours' id='5' value='BrowserColor_5'
PROPERTY control='_PresetManagerView' name='graphics' id='0' value='none'
PROPERTY control='_PresetManagerView' name='labeltext' id='0' value='PresetManager 34887'
PROPERTY control='_PresetManagerView' name='labelTextAlignment' id='0' value='0'
PROPERTY control='_PresetManagerView' name='labelTextVAlignment' id='0' value='1'
PROPERTY control='_PresetManagerView' name='labelTextSize' id='0' value='11.00'
PROPERTY control='_PresetManagerView' name='labelTextVOffset' id='0' value='-2.00'

CONTROL type='Layout-Stack' name='_TagFilterFrameStack' bounds='0.00 64.00 235.00 300.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_TagFilterFrameStack' name='colours' id='0' value='none'
PROPERTY control='_TagFilterFrameStack' name='colours' id='1' value='none'
PROPERTY control='_TagFilterFrameStack' name='graphics' id='0' value='none'

CONTROL type='TagFilter' name='_TagFilterView' bounds='5.00 5.00 235.00 290.00' parent='_TagFilterFrameStack' layerMask='ffffffff'
PROPERTY control='_TagFilterView' name='colours' id='0' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='1' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='2' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='3' value='grey' /*Subtitles*/
PROPERTY control='_TagFilterView' name='colours' id='4' value='none'
PROPERTY control='_TagFilterView' name='colours' id='5' value='grey' /*Subtitle Borders*/
PROPERTY control='_TagFilterView' name='colours' id='6' value='TagBG_OFF'
PROPERTY control='_TagFilterView' name='colours' id='7' value='TagBG_OFF' /*Tag Off*/
PROPERTY control='_TagFilterView' name='colours' id='8' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='9' value='TagText_OFF' /*tag text itself*/
PROPERTY control='_TagFilterView' name='colours' id='10' value='TagBG_ON' /*Selected Tag BG*/
PROPERTY control='_TagFilterView' name='colours' id='11' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='12' value='TagText_ON' /*Selected Text Color*/
PROPERTY control='_TagFilterView' name='colours' id='13' value='none'
PROPERTY control='_TagFilterView' name='colours' id='14' value='none'
PROPERTY control='_TagFilterView' name='colours' id='15' value='TagBG_OFF'
PROPERTY control='_TagFilterView' name='colours' id='16' value='none'
PROPERTY control='_TagFilterView' name='colours' id='17' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='18' value='TagBG_OFF'
PROPERTY control='_TagFilterView' name='colours' id='19' value='TagBG_OFF_ALT'
PROPERTY control='_TagFilterView' name='colours' id='20' value='grey'
PROPERTY control='_TagFilterView' name='colours' id='21' value='invisible' /*Selected Category Border*/
PROPERTY control='_TagFilterView' name='colours' id='22' value='white'
PROPERTY control='_TagFilterView' name='colours' id='23' value='PIV-TitleText'
PROPERTY control='_TagFilterView' name='graphics' id='0' value='none'
PROPERTY control='_TagFilterView' name='graphics' id='1' value='none'
PROPERTY control='_TagFilterView' name='graphics' id='2' value='none'
PROPERTY control='_TagFilterView' name='graphics' id='3' value='CTag-Delete'
PROPERTY control='_TagFilterView' name='graphics' id='4' value='Header-Open'
PROPERTY control='_TagFilterView' name='graphics' id='5' value='Header-Close'


CONTROL type='Button On-Off' name='_RestoreButton' bounds='340.00 10.00 55.00 18.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_RestoreButton' name='colours' id='0' value='none'
PROPERTY control='_RestoreButton' name='colours' id='1' value='BrowserColor_5'
PROPERTY control='_RestoreButton' name='colours' id='2' value='grey'
PROPERTY control='_RestoreButton' name='colours' id='3' value='none'
PROPERTY control='_RestoreButton' name='colours' id='4' value='none'
PROPERTY control='_RestoreButton' name='graphics' id='0' value='none'
PROPERTY control='_RestoreButton' name='graphics' id='1' value='none'
PROPERTY control='_RestoreButton' name='graphics' id='2' value='none'
PROPERTY control='_RestoreButton' name='graphics' id='3' value='none'

CONTROL type='Label' name='_RestoreLabel' bounds='64.00 0.00 360.00 18.00' parent='_RestoreButton' layerMask='ffffffff'
PROPERTY control='_RestoreLabel' name='colours' id='0' value='none'
PROPERTY control='_RestoreLabel' name='colours' id='1' value='grey'
PROPERTY control='_RestoreLabel' name='graphics' id='0' value='none'
PROPERTY control='_RestoreLabel' name='labeltext' id='0' value='initialize'

CONTROL type='StateButton' name='_DatabaseUpdateIndicator' bounds='970.00 10.00 60.00 20.00' parent='PatchBrowser' layerMask='ffffffff'

CONTROL type='PresetSelector' name='_PresetSelector' bounds='255.00 38.00 780.00 572.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_PresetSelector' name='colours' id='0' value='none'
PROPERTY control='_PresetSelector' name='colours' id='1' value='grey'
PROPERTY control='_PresetSelector' name='colours' id='2' value='grey'
PROPERTY control='_PresetSelector' name='colours' id='3' value='black'
PROPERTY control='_PresetSelector' name='colours' id='4' value='invisible'
PROPERTY control='_PresetSelector' name='colours' id='5' value='BrowserColor_5'
PROPERTY control='_PresetSelector' name='colours' id='6' value='none'
PROPERTY control='_PresetSelector' name='colours' id='7' value='none'
PROPERTY control='_PresetSelector' name='colours' id='8' value='none'
PROPERTY control='_PresetSelector' name='colours' id='9' value='none'
PROPERTY control='_PresetSelector' name='colours' id='10' value='none'
PROPERTY control='_PresetSelector' name='colours' id='11' value='none'
PROPERTY control='_PresetSelector' name='colours' id='12' value='none'
PROPERTY control='_PresetSelector' name='colours' id='13' value='none'
PROPERTY control='_PresetSelector' name='graphics' id='0' value='none'
PROPERTY control='_PresetSelector' name='graphics' id='1' value='JunkIcon'
PROPERTY control='_PresetSelector' name='graphics' id='2' value='FavIcon-1'
PROPERTY control='_PresetSelector' name='graphics' id='3' value='FavIcon-2'
PROPERTY control='_PresetSelector' name='graphics' id='4' value='FavIcon-3'
PROPERTY control='_PresetSelector' name='graphics' id='5' value='FavIcon-4'
PROPERTY control='_PresetSelector' name='graphics' id='6' value='FavIcon-5'
PROPERTY control='_PresetSelector' name='graphics' id='7' value='FavIcon-6'
PROPERTY control='_PresetSelector' name='graphics' id='8' value='FavIcon-7'
PROPERTY control='_PresetSelector' name='graphics' id='9' value='FavIcon-8'
PROPERTY control='_PresetSelector' name='labeltext' id='0' value='PresetSelector 34547'
PROPERTY control='_PresetSelector' name='mLabelTextAlignment' id='0' value='0'
PROPERTY control='_PresetSelector' name='mLabelTextVAlignment' id='0' value='1'
PROPERTY control='_PresetSelector' name='mLabelTextSize' id='0' value='11.00'
PROPERTY control='_PresetSelector' name='mLabelTextVOffset' id='0' value='-2.00'
PROPERTY control='_PresetSelector' name='Columns' id='1' value='4'
PROPERTY control='_PresetSelector' name='ScrollType' id='1' value='horizontal'

CONTROL type='Rack' name='Rack 11349' bounds='108.00 516.00 228.00 192.00' parent='Pane PatchBrowserWindow' layerMask='1'
PROPERTY control='Rack 11349' name='colours' id='0' value='none'
PROPERTY control='Rack 11349' name='colours' id='1' value='none'
PROPERTY control='Rack 11349' name='colours' id='2' value='invisible'
PROPERTY control='Rack 11349' name='colours' id='3' value='VoltaDisplayGrey'
PROPERTY control='Rack 11349' name='graphics' id='0' value='none'
PROPERTY control='Rack 11349' name='layer' id='0' value='RackUnit 1'
PROPERTY control='Rack 11349' name='allowSwapping' id='0' value='NO'

CONTROL type='Pane' name='_PresetInspectorStack' bounds='645.00 0.00 220.00 650.00' parent='Rack 11349' layerMask='ffffffff'
PROPERTY control='_PresetInspectorStack' name='colours' id='0' value='none'
PROPERTY control='_PresetInspectorStack' name='colours' id='1' value='none'
PROPERTY control='_PresetInspectorStack' name='graphics' id='0' value='none'

CONTROL type='Layout-Stack' name='_PresetInspectorHeaderStack' bounds='0.00 0.00 220.00 32.00' parent='_PresetInspectorStack' layerMask='ffffffff'
PROPERTY control='_PresetInspectorHeaderStack' name='colours' id='0' value='none'
PROPERTY control='_PresetInspectorHeaderStack' name='colours' id='1' value='none'
PROPERTY control='_PresetInspectorHeaderStack' name='graphics' id='0' value='none'

CONTROL type='Label' name='_PresetInspectorInfoLabel' bounds='0.00 10.00 82.00 12.00' parent='_PresetInspectorHeaderStack' layerMask='ffffffff'
PROPERTY control='_PresetInspectorInfoLabel' name='colours' id='0' value='none'
PROPERTY control='_PresetInspectorInfoLabel' name='colours' id='1' value='grey'
PROPERTY control='_PresetInspectorInfoLabel' name='graphics' id='0' value='none'
PROPERTY control='_PresetInspectorInfoLabel' name='labeltext' id='0' value='PRESET INFO'

CONTROL type='PresetInspector' name='_PresetInspectorView' bounds='0.00 32.00 220.00 360.00' parent='_PresetInspectorStack' layerMask='ffffffff'
PROPERTY control='_PresetInspectorView' name='colours' id='0' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='1' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='2' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='3' value='grey60'
PROPERTY control='_PresetInspectorView' name='colours' id='4' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='5' value='grey60'
PROPERTY control='_PresetInspectorView' name='colours' id='6' value='TagBG_OFF'
PROPERTY control='_PresetInspectorView' name='colours' id='7' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='8' value='greyA0'
PROPERTY control='_PresetInspectorView' name='colours' id='9' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='10' value='PIV-TitleText'
PROPERTY control='_PresetInspectorView' name='colours' id='11' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='12' value='grey60'
PROPERTY control='_PresetInspectorView' name='colours' id='13' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='14' value='greyA0'
PROPERTY control='_PresetInspectorView' name='colours' id='15' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='16' value='invisible'
PROPERTY control='_PresetInspectorView' name='colours' id='17' value='TagBG_OFF'
PROPERTY control='_PresetInspectorView' name='graphics' id='0' value='none'
PROPERTY control='_PresetInspectorView' name='graphics' id='1' value='none'
PROPERTY control='_PresetInspectorView' name='graphics' id='2' value='none'
PARAMETER control='_PresetInspectorView' port='Name' module='PCore' parameter='GFile'
PARAMETER control='_PresetInspectorView' port='Path' module='PCore' parameter='PFold'
PARAMETER control='_PresetInspectorView' port='Author' module='PCore' parameter='MetaA'
PARAMETER control='_PresetInspectorView' port='Description' module='PCore' parameter='MetaD'
PARAMETER control='_PresetInspectorView' port='Usage' module='PCore' parameter='MetaH'
PARAMETER control='_PresetInspectorView' port='Category' module='PCore' parameter='MetaCat'
PARAMETER control='_PresetInspectorView' port='Features' module='PCore' parameter='MetaF'
PARAMETER control='_PresetInspectorView' port='Character' module='PCore' parameter='MetaCha'


PROPERTY control='PatchBrowser' name='columns' id='0' value='3'
PROPERTY control='PatchBrowser' name='spacing' id='0' value='4.00'
PROPERTY control='PatchBrowser' name='margin H' id='0' value='2.00'
PROPERTY control='PatchBrowser' name='margin V' id='0' value='2.00'
PROPERTY control='_PresetManagerStack' name='align (non orientation)' id='0' value='left'
PROPERTY control='_PresetManagerStack' name='margin H' id='0' value='2.00'
PROPERTY control='_SearchStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_SearchStack' name='margin H' id='0' value='8.00'
PROPERTY control='_SearchStack' name='margin V' id='0' value='6.00'
PROPERTY control='_SearchTextInput' name='FontSize' id='0' value='12.00'
PROPERTY control='_SearchTextInput' name='FontAlignment' id='0' value='left'
PROPERTY control='_SearchTextInput' name='text truncation' id='0' value='left'
PROPERTY control='_SearchTextInput' name='empty string replace' id='0' value='Search...'
PROPERTY control='_DisplayRootStack' name='orientation' id='0' value='horizontal'
PROPERTY control='_DisplayRootStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_DisplayRootStack' name='spacing' id='0' value='2.00'
PROPERTY control='_DisplayRootStack' name='Weight H' id='0' value='0.00'
PROPERTY control='_DisplayRootStack' name='Weight V' id='0' value='0.00'
PROPERTY control='_FolderUpButton' name='ActionID' id='1' value='666F6C55'
PROPERTY control='_DisplayPathLabel' name='FontSize' id='0' value='12.00'
PROPERTY control='_DisplayPathLabel' name='FontAlignment' id='0' value='left'
PROPERTY control='_DisplayPathLabel' name='clickThrough' id='0' value='YES'
PROPERTY control='_ClearFolderButton' name='ActionID' id='1' value='636C6546'
PROPERTY control='_PresetManagerFrameStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetManagerFrameStack' name='margin V' id='0' value='5.00'
PROPERTY control='_PresetManagerHeaderStack' name='orientation' id='0' value='horizontal'
PROPERTY control='_PresetManagerHeaderStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetManagerHeaderStack' name='Weight H' id='0' value='0.00'
PROPERTY control='_PresetManagerHeaderStack' name='Weight V' id='0' value='0.00'
PROPERTY control='_PresetSelectorStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetSelectorStack' name='margin H' id='0' value='5.00'
PROPERTY control='_RestoreStack' name='orientation' id='0' value='horizontal'
PROPERTY control='_RestoreStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_RestoreStack' name='spacing' id='0' value='4.00'
PROPERTY control='_PresetSelector' name='Weight H' id='0' value='128.00'
PROPERTY control='_RestoreButton' name='ActionID' id='1' value='72657350'
PROPERTY control='_RestoreLabel' name='FontSize' id='0' value='12.00'
PROPERTY control='_RestoreLabel' name='FontAlignment' id='0' value='left'
PROPERTY control='_PresetInspectorStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetInspectorStack' name='margin H' id='0' value='5.00'
PROPERTY control='_PresetInspectorHeaderStack' name='orientation' id='0' value='horizontal'
PROPERTY control='_PresetInspectorHeaderStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetInspectorHeaderStack' name='spacing' id='0' value='4.00'
PROPERTY control='_PresetInspectorHeaderStack' name='Resize Type H' id='0' value='Flexible'
PROPERTY control='_PresetInspectorInfoLabel' name='FontSize' id='0' value='12.00'
PROPERTY control='_PresetInspectorInfoLabel' name='FontAlignment' id='0' value='left'
PROPERTY control='_PresetInspectorView' name='tag font size' id='0' value='10.00'
PROPERTY control='_PresetInspectorView' name='content font size' id='0' value='10.00'
PROPERTY control='_PresetInspectorView' name='Weight V' id='0' value='64.00'
PROPERTY control='_TagFilterFrameStack' name='align (non orientation)' id='0' value='left'
PROPERTY control='_TagFilterFrameStack' name='margin H' id='0' value='0.00'
PROPERTY control='_TagFilterFrameStack' name='margin V' id='0' value='5.00'
PROPERTY control='_TagFilterView' name='tag item spacing' id='0' value='5.00'
PROPERTY control='_TagFilterView' name='tag font size' id='0' value='10.00'
PROPERTY control='_TagFilterView' name='header triangle position' id='0' value='right'
PROPERTY control='_TagFilterView' name='header font v offset' id='0' value='-3.00'
PROPERTY control='_TagFilterView' name='margin H' id='0' value='5.00'
PROPERTY control='_TagFilterView' name='margin V' id='0' value='5.00'


CONTROL type='Button On-Off' name='Button BrowserTagPanel' bounds='1120.00 69.00 24.00 24.00' parent='Pane PatchBrowserWindow' layerMask='1'
PROPERTY control='Button BrowserTagPanel' name='colours' id='0' value='none'
PROPERTY control='Button BrowserTagPanel' name='colours' id='1' value='none'
PROPERTY control='Button BrowserTagPanel' name='colours' id='2' value='none'
PROPERTY control='Button BrowserTagPanel' name='colours' id='3' value='none'
PROPERTY control='Button BrowserTagPanel' name='colours' id='4' value='none'
PROPERTY control='Button BrowserTagPanel' name='graphics' id='0' value='none'
PROPERTY control='Button BrowserTagPanel' name='graphics' id='1' value='none'
PROPERTY control='Button BrowserTagPanel' name='graphics' id='2' value='none'
PROPERTY control='Button BrowserTagPanel' name='graphics' id='3' value='none'

/*1.4 browser patch end*/

Yes, the new preset browser needs such long codes. This is based on what I used in AIKO skin, but changed width/height/colors etc to fit to Volta.

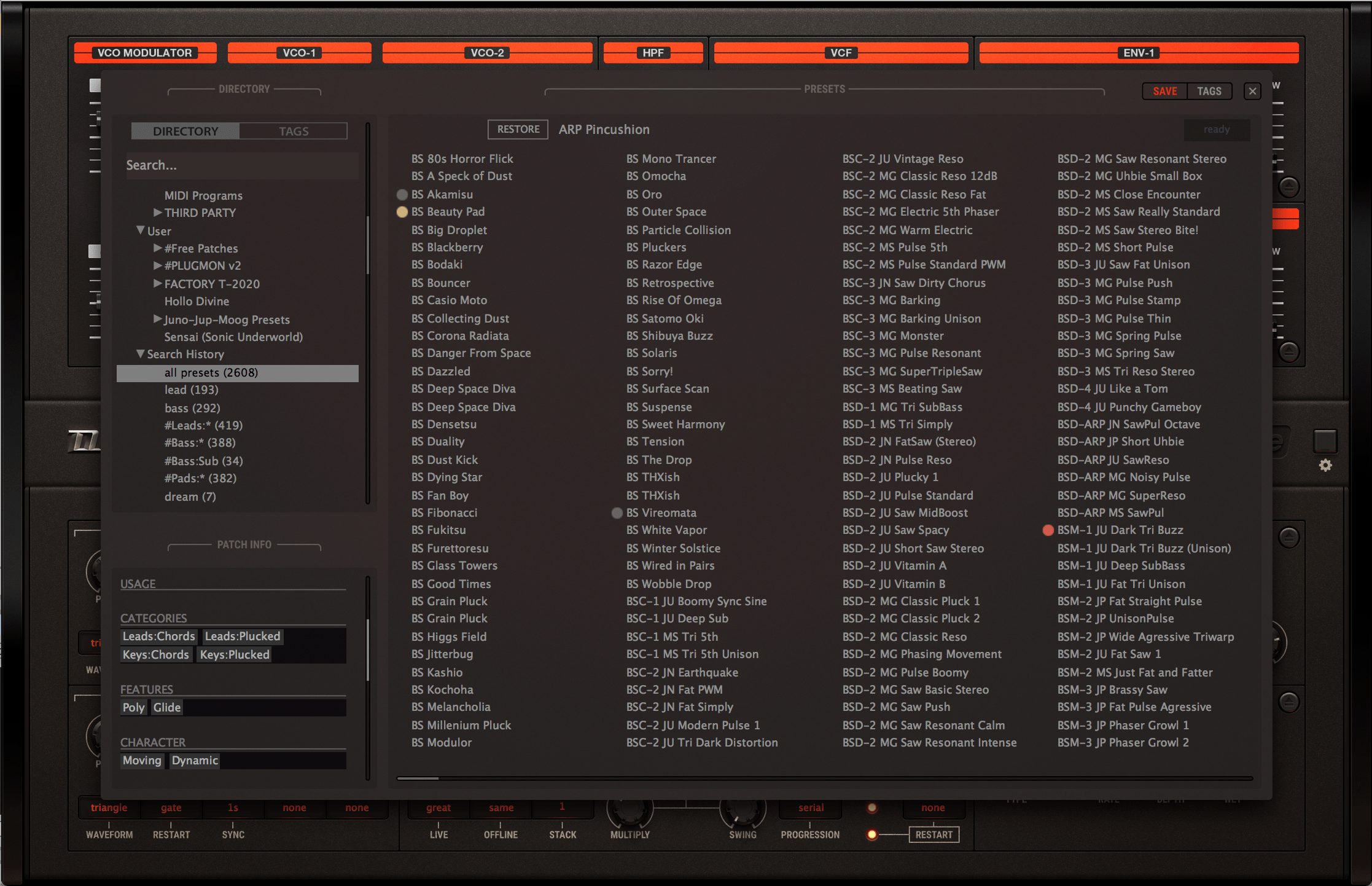

Now you can search presets, filter by tag, Favorite them with 8 colors!

Variations

You’ll soon find that Volta’s patch info display is too small for new system to display all information. In most cases you have to scroll to see tags.

I’m such a gentleman that I made 2 variations for you to solve this issue!

Oldschool Patchinfo

First one is just keeping patch info as it was.

/*v1.4 Tag Browser Patchwork by plugmon.jp*/
COLOUR name='BrowserColor_5' rgba='fafafa55'
COLOUR name='BrowserColor_A' rgba='fafafaAA'
COLOUR name='PM_Search_BG' rgba='352D2Bff'
COLOUR name='PB_ScanBG_off' rgba='40'
COLOUR name='PB_ScanTXT_off' rgba='272c30ff'
COLOUR name='PB_ScanBG_on' rgba='92352eff'
COLOUR name='PB_ScanTXT_on' rgba='fff3e5ff'
COLOUR name='PB_ScanPROG_on' rgba='ffa26fc0'
COLOUR name='TagBG_OFF' rgba='444444aa'
COLOUR name='TagBG_OFF_ALT' rgba='313131aa'
COLOUR name='TagBG_ON' rgba='F6524A77'
COLOUR name='TagText_ON' rgba='ff3311FF'
COLOUR name='TagText_OFF' rgba='ffffff66'
COLOUR name='PIV-TitleText' rgba='9f3533ff'

CONTROL type='PresetBrowser' name='PatchBrowser' bounds='10.00 35.00 1190.00 600.00' parent='Pane WindowBlock' layerMask='1'
PROPERTY control='PatchBrowser' name='colours' id='0' value='none'
PROPERTY control='PatchBrowser' name='colours' id='1' value='none'
PROPERTY control='PatchBrowser' name='colours' id='2' value='PB_ScanBG_off'
PROPERTY control='PatchBrowser' name='colours' id='3' value='none'
PROPERTY control='PatchBrowser' name='colours' id='4' value='PB_ScanTXT_off'
PROPERTY control='PatchBrowser' name='colours' id='5' value='none'
PROPERTY control='PatchBrowser' name='colours' id='6' value='PB_ScanBG_on'
PROPERTY control='PatchBrowser' name='colours' id='7' value='none'
PROPERTY control='PatchBrowser' name='colours' id='8' value='PB_ScanTXT_on'
PROPERTY control='PatchBrowser' name='colours' id='9' value='PB_ScanPROG_on'
PROPERTY control='PatchBrowser' name='graphics' id='0' value='none'

CONTROL type='Layout-Stack' name='_PresetManagerStack' bounds='0.00 0.00 210.00 550.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_PresetManagerStack' name='colours' id='0' value='none'
PROPERTY control='_PresetManagerStack' name='colours' id='1' value='none'
PROPERTY control='_PresetManagerStack' name='graphics' id='0' value='none'

CONTROL type='Layout-Stack' name='_PresetManagerHeaderStack' bounds='2.00 0.00 210.00 32.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_PresetManagerHeaderStack' name='colours' id='0' value='none'
PROPERTY control='_PresetManagerHeaderStack' name='colours' id='1' value='none'
PROPERTY control='_PresetManagerHeaderStack' name='graphics' id='0' value='none'

CONTROL type='Button On-Off' name='_DirectoryButton' bounds='18.00 10.00 98.00 21.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_DirectoryButton' name='colours' id='0' value='invisible'
PROPERTY control='_DirectoryButton' name='colours' id='1' value='none'
PROPERTY control='_DirectoryButton' name='colours' id='2' value='invisible'
PROPERTY control='_DirectoryButton' name='colours' id='3' value='none'
PROPERTY control='_DirectoryButton' name='colours' id='4' value='none'
PROPERTY control='_DirectoryButton' name='graphics' id='0' value='none'
PROPERTY control='_DirectoryButton' name='graphics' id='1' value='Tab-PBDirect'
PROPERTY control='_DirectoryButton' name='graphics' id='2' value='none'
PROPERTY control='_DirectoryButton' name='graphics' id='3' value='none'

CONTROL type='Button On-Off' name='_SearchButton' bounds='116.00 10.00 98.00 21.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_SearchButton' name='colours' id='0' value='invisible'
PROPERTY control='_SearchButton' name='colours' id='1' value='none'
PROPERTY control='_SearchButton' name='colours' id='2' value='invisible'
PROPERTY control='_SearchButton' name='colours' id='3' value='none'
PROPERTY control='_SearchButton' name='colours' id='4' value='none'
PROPERTY control='_SearchButton' name='graphics' id='0' value='none'
PROPERTY control='_SearchButton' name='graphics' id='1' value='Tab-PBTags'
PROPERTY control='_SearchButton' name='graphics' id='2' value='none'
PROPERTY control='_SearchButton' name='graphics' id='3' value='none'

PROPERTY control='_DirectoryButton' name='ActionID' id='1' value='70625344'
PROPERTY control='_SearchButton' name='ActionID' id='1' value='70625353'

CONTROL type='Layout-Stack' name='_SearchStack' bounds='0.00 32.00 228.00 32.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_SearchStack' name='colours' id='0' value='none'
PROPERTY control='_SearchStack' name='colours' id='1' value='none'
PROPERTY control='_SearchStack' name='graphics' id='0' value='none'

CONTROL type='TextInput' name='_SearchTextInput' bounds='0.00 6.00 210.00 24.00' parent='_SearchStack' layerMask='ffffffff'
PROPERTY control='_SearchTextInput' name='colours' id='0' value='PM_Search_BG'
PROPERTY control='_SearchTextInput' name='colours' id='1' value='PM_Search_BG'
PROPERTY control='_SearchTextInput' name='colours' id='2' value='grey'
PROPERTY control='_SearchTextInput' name='colours' id='3' value='BrowserColor_5'
PROPERTY control='_SearchTextInput' name='colours' id='4' value='trans white'
PROPERTY control='_SearchTextInput' name='colours' id='5' value='black'
PROPERTY control='_SearchTextInput' name='colours' id='6' value='white'
PROPERTY control='_SearchTextInput' name='graphics' id='0' value='none'
PROPERTY control='_SearchTextInput' name='graphics' id='1' value='none'

CONTROL type='Layout-Stack' name='_DisplayRootStack' bounds='2.00 36.00 195.00 32.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_DisplayRootStack' name='colours' id='0' value='none'
PROPERTY control='_DisplayRootStack' name='colours' id='1' value='none'
PROPERTY control='_DisplayRootStack' name='graphics' id='0' value='none'

CONTROL type='Button On-Off' name='_FolderUpButton' bounds='0.00 0.00 22.00 16.00' parent='_DisplayRootStack' layerMask='ffffffff'
PROPERTY control='_FolderUpButton' name='colours' id='0' value='none'
PROPERTY control='_FolderUpButton' name='colours' id='1' value='none'
PROPERTY control='_FolderUpButton' name='colours' id='2' value='none'
PROPERTY control='_FolderUpButton' name='colours' id='3' value='none'
PROPERTY control='_FolderUpButton' name='colours' id='4' value='none'
PROPERTY control='_FolderUpButton' name='graphics' id='0' value='RS-Up'
PROPERTY control='_FolderUpButton' name='graphics' id='1' value='none'
PROPERTY control='_FolderUpButton' name='graphics' id='2' value='none'
PROPERTY control='_FolderUpButton' name='graphics' id='3' value='none'

CONTROL type='Button On-Off' name='_ClearFolderButton' bounds='22.00 0.00 16.00 16.00' parent='_DisplayRootStack' layerMask='ffffffff'
PROPERTY control='_ClearFolderButton' name='colours' id='0' value='none'
PROPERTY control='_ClearFolderButton' name='colours' id='1' value='none'
PROPERTY control='_ClearFolderButton' name='colours' id='2' value='none'
PROPERTY control='_ClearFolderButton' name='colours' id='3' value='none'
PROPERTY control='_ClearFolderButton' name='colours' id='4' value='none'
PROPERTY control='_ClearFolderButton' name='graphics' id='0' value='RS-Delete'
PROPERTY control='_ClearFolderButton' name='graphics' id='1' value='none'
PROPERTY control='_ClearFolderButton' name='graphics' id='2' value='none'
PROPERTY control='_ClearFolderButton' name='graphics' id='3' value='none'

CONTROL type='Label' name='_DisplayPathLabel' bounds='54.00 0.00 170.00 24.00' parent='_DisplayRootStack' layerMask='ffffffff'
PROPERTY control='_DisplayPathLabel' name='colours' id='0' value='none'
PROPERTY control='_DisplayPathLabel' name='colours' id='1' value='Orange8080'
PROPERTY control='_DisplayPathLabel' name='graphics' id='0' value='none'
PROPERTY control='_DisplayPathLabel' name='labeltext' id='0' value='/'
PROPERTY control='_DisplayPathLabel' name='clickThrough' id='0' value='yes'
PROPERTY control='_DisplayPathLabel' name='FontSize' id='0' value='11.00'

CONTROL type='Layout-Stack' name='_PresetManagerFrameStack' bounds='0.00 40.00 235.00 300.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_PresetManagerFrameStack' name='colours' id='0' value='none'
PROPERTY control='_PresetManagerFrameStack' name='colours' id='1' value='none'
PROPERTY control='_PresetManagerFrameStack' name='graphics' id='0' value='none'

CONTROL type='PresetManager' name='_PresetManagerView' bounds='0.00 0.00 235.00 290.00' parent='_PresetManagerFrameStack' layerMask='ffffffff'
PROPERTY control='_PresetManagerView' name='colours' id='0' value='none'
PROPERTY control='_PresetManagerView' name='colours' id='1' value='grey'
PROPERTY control='_PresetManagerView' name='colours' id='2' value='grey'
PROPERTY control='_PresetManagerView' name='colours' id='3' value='black'
PROPERTY control='_PresetManagerView' name='colours' id='4' value='invisible'
PROPERTY control='_PresetManagerView' name='colours' id='5' value='BrowserColor_5'
PROPERTY control='_PresetManagerView' name='graphics' id='0' value='none'
PROPERTY control='_PresetManagerView' name='labeltext' id='0' value='PresetManager 34887'
PROPERTY control='_PresetManagerView' name='labelTextAlignment' id='0' value='0'
PROPERTY control='_PresetManagerView' name='labelTextVAlignment' id='0' value='1'
PROPERTY control='_PresetManagerView' name='labelTextSize' id='0' value='11.00'
PROPERTY control='_PresetManagerView' name='labelTextVOffset' id='0' value='-2.00'

CONTROL type='Layout-Stack' name='_TagFilterFrameStack' bounds='0.00 64.00 235.00 300.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_TagFilterFrameStack' name='colours' id='0' value='none'
PROPERTY control='_TagFilterFrameStack' name='colours' id='1' value='none'
PROPERTY control='_TagFilterFrameStack' name='graphics' id='0' value='none'

CONTROL type='TagFilter' name='_TagFilterView' bounds='5.00 5.00 235.00 290.00' parent='_TagFilterFrameStack' layerMask='ffffffff'
PROPERTY control='_TagFilterView' name='colours' id='0' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='1' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='2' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='3' value='grey' /*Subtitles*/
PROPERTY control='_TagFilterView' name='colours' id='4' value='none'
PROPERTY control='_TagFilterView' name='colours' id='5' value='grey' /*Subtitle Borders*/
PROPERTY control='_TagFilterView' name='colours' id='6' value='TagBG_OFF'
PROPERTY control='_TagFilterView' name='colours' id='7' value='TagBG_OFF' /*Tag Off*/
PROPERTY control='_TagFilterView' name='colours' id='8' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='9' value='TagText_OFF' /*tag text itself*/
PROPERTY control='_TagFilterView' name='colours' id='10' value='TagBG_ON' /*Selected Tag BG*/
PROPERTY control='_TagFilterView' name='colours' id='11' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='12' value='TagText_ON' /*Selected Text Color*/
PROPERTY control='_TagFilterView' name='colours' id='13' value='none'
PROPERTY control='_TagFilterView' name='colours' id='14' value='none'
PROPERTY control='_TagFilterView' name='colours' id='15' value='TagBG_OFF'
PROPERTY control='_TagFilterView' name='colours' id='16' value='none'
PROPERTY control='_TagFilterView' name='colours' id='17' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='18' value='TagBG_OFF'
PROPERTY control='_TagFilterView' name='colours' id='19' value='TagBG_OFF_ALT'
PROPERTY control='_TagFilterView' name='colours' id='20' value='grey'
PROPERTY control='_TagFilterView' name='colours' id='21' value='invisible' /*Selected Category Border*/
PROPERTY control='_TagFilterView' name='colours' id='22' value='white'
PROPERTY control='_TagFilterView' name='colours' id='23' value='PIV-TitleText'
PROPERTY control='_TagFilterView' name='graphics' id='0' value='none'
PROPERTY control='_TagFilterView' name='graphics' id='1' value='none'
PROPERTY control='_TagFilterView' name='graphics' id='2' value='none'
PROPERTY control='_TagFilterView' name='graphics' id='3' value='CTag-Delete'
PROPERTY control='_TagFilterView' name='graphics' id='4' value='Header-Open'
PROPERTY control='_TagFilterView' name='graphics' id='5' value='Header-Close'


CONTROL type='Button On-Off' name='_RestoreButton' bounds='340.00 10.00 55.00 18.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_RestoreButton' name='colours' id='0' value='none'
PROPERTY control='_RestoreButton' name='colours' id='1' value='BrowserColor_5'
PROPERTY control='_RestoreButton' name='colours' id='2' value='grey'
PROPERTY control='_RestoreButton' name='colours' id='3' value='none'
PROPERTY control='_RestoreButton' name='colours' id='4' value='none'
PROPERTY control='_RestoreButton' name='graphics' id='0' value='none'
PROPERTY control='_RestoreButton' name='graphics' id='1' value='none'
PROPERTY control='_RestoreButton' name='graphics' id='2' value='none'
PROPERTY control='_RestoreButton' name='graphics' id='3' value='none'

CONTROL type='Label' name='_RestoreLabel' bounds='64.00 0.00 360.00 18.00' parent='_RestoreButton' layerMask='ffffffff'
PROPERTY control='_RestoreLabel' name='colours' id='0' value='none'
PROPERTY control='_RestoreLabel' name='colours' id='1' value='grey'
PROPERTY control='_RestoreLabel' name='graphics' id='0' value='none'
PROPERTY control='_RestoreLabel' name='labeltext' id='0' value='initialize'

CONTROL type='StateButton' name='_DatabaseUpdateIndicator' bounds='970.00 10.00 60.00 20.00' parent='PatchBrowser' layerMask='ffffffff'

CONTROL type='PresetSelector' name='_PresetSelector' bounds='255.00 38.00 780.00 572.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_PresetSelector' name='colours' id='0' value='none'
PROPERTY control='_PresetSelector' name='colours' id='1' value='grey'
PROPERTY control='_PresetSelector' name='colours' id='2' value='grey'
PROPERTY control='_PresetSelector' name='colours' id='3' value='black'
PROPERTY control='_PresetSelector' name='colours' id='4' value='invisible'
PROPERTY control='_PresetSelector' name='colours' id='5' value='BrowserColor_5'
PROPERTY control='_PresetSelector' name='colours' id='6' value='none'
PROPERTY control='_PresetSelector' name='colours' id='7' value='none'
PROPERTY control='_PresetSelector' name='colours' id='8' value='none'
PROPERTY control='_PresetSelector' name='colours' id='9' value='none'
PROPERTY control='_PresetSelector' name='colours' id='10' value='none'
PROPERTY control='_PresetSelector' name='colours' id='11' value='none'
PROPERTY control='_PresetSelector' name='colours' id='12' value='none'
PROPERTY control='_PresetSelector' name='colours' id='13' value='none'
PROPERTY control='_PresetSelector' name='graphics' id='0' value='none'
PROPERTY control='_PresetSelector' name='graphics' id='1' value='JunkIcon'
PROPERTY control='_PresetSelector' name='graphics' id='2' value='FavIcon-1'
PROPERTY control='_PresetSelector' name='graphics' id='3' value='FavIcon-2'
PROPERTY control='_PresetSelector' name='graphics' id='4' value='FavIcon-3'
PROPERTY control='_PresetSelector' name='graphics' id='5' value='FavIcon-4'
PROPERTY control='_PresetSelector' name='graphics' id='6' value='FavIcon-5'
PROPERTY control='_PresetSelector' name='graphics' id='7' value='FavIcon-6'
PROPERTY control='_PresetSelector' name='graphics' id='8' value='FavIcon-7'
PROPERTY control='_PresetSelector' name='graphics' id='9' value='FavIcon-8'
PROPERTY control='_PresetSelector' name='labeltext' id='0' value='PresetSelector 34547'
PROPERTY control='_PresetSelector' name='mLabelTextAlignment' id='0' value='0'
PROPERTY control='_PresetSelector' name='mLabelTextVAlignment' id='0' value='1'
PROPERTY control='_PresetSelector' name='mLabelTextSize' id='0' value='11.00'
PROPERTY control='_PresetSelector' name='mLabelTextVOffset' id='0' value='-2.00'
PROPERTY control='_PresetSelector' name='Columns' id='1' value='4'
PROPERTY control='_PresetSelector' name='ScrollType' id='1' value='horizontal'

CONTROL type='Rack' name='Rack 11349' bounds='108.00 516.00 228.00 192.00' parent='Pane PatchBrowserWindow' layerMask='1'
PROPERTY control='Rack 11349' name='colours' id='0' value='none'
PROPERTY control='Rack 11349' name='colours' id='1' value='none'
PROPERTY control='Rack 11349' name='colours' id='2' value='invisible'
PROPERTY control='Rack 11349' name='colours' id='3' value='VoltaDisplayGrey'
PROPERTY control='Rack 11349' name='graphics' id='0' value='none'
PROPERTY control='Rack 11349' name='layer' id='0' value='RackUnit 1'
PROPERTY control='Rack 11349' name='allowSwapping' id='0' value='NO'

/*Conventional Patch Info*/
CONTROL type='Pane' name='Pane 11350' bounds='6.00 0.00 204.00 53.00' parent='Rack 11349' layerMask='1'
PROPERTY control='Pane 11350' name='colours' id='0' value='none'
PROPERTY control='Pane 11350' name='colours' id='1' value='none'
PROPERTY control='Pane 11350' name='colours' id='2' value='none'
PROPERTY control='Pane 11350' name='colours' id='3' value='none'
PROPERTY control='Pane 11350' name='graphics' id='0' value='none'
PROPERTY control='Pane 11350' name='layer' id='0' value='Layer 1'

CONTROL type='Label' name='Label 11351' bounds='0.00 4.00 204.00 26.00' parent='Pane 11350' layerMask='1'
PROPERTY control='Label 11351' name='colours' id='0' value='none'
PROPERTY control='Label 11351' name='colours' id='1' value='VoltaDisplayGrey'
PROPERTY control='Label 11351' name='graphics' id='0' value='none'
PROPERTY control='Label 11351' name='labeltext' id='0' value='Label 11351'
PROPERTY control='Label 11351' name='metaDisplay' id='0' value='yes'


/*New style patchinfo*/
/*
CONTROL type='Pane' name='_PresetInspectorStack' bounds='645.00 0.00 220.00 650.00' parent='Rack 11349' layerMask='ffffffff'
PROPERTY control='_PresetInspectorStack' name='colours' id='0' value='none'
PROPERTY control='_PresetInspectorStack' name='colours' id='1' value='none'
PROPERTY control='_PresetInspectorStack' name='graphics' id='0' value='none'

CONTROL type='Layout-Stack' name='_PresetInspectorHeaderStack' bounds='0.00 0.00 220.00 32.00' parent='_PresetInspectorStack' layerMask='ffffffff'
PROPERTY control='_PresetInspectorHeaderStack' name='colours' id='0' value='none'
PROPERTY control='_PresetInspectorHeaderStack' name='colours' id='1' value='none'
PROPERTY control='_PresetInspectorHeaderStack' name='graphics' id='0' value='none'

CONTROL type='Label' name='_PresetInspectorInfoLabel' bounds='0.00 10.00 82.00 12.00' parent='_PresetInspectorHeaderStack' layerMask='ffffffff'
PROPERTY control='_PresetInspectorInfoLabel' name='colours' id='0' value='none'
PROPERTY control='_PresetInspectorInfoLabel' name='colours' id='1' value='grey'
PROPERTY control='_PresetInspectorInfoLabel' name='graphics' id='0' value='none'
PROPERTY control='_PresetInspectorInfoLabel' name='labeltext' id='0' value='PRESET INFO'

CONTROL type='PresetInspector' name='_PresetInspectorView' bounds='0.00 32.00 220.00 360.00' parent='_PresetInspectorStack' layerMask='ffffffff'
PROPERTY control='_PresetInspectorView' name='colours' id='0' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='1' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='2' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='3' value='grey60'
PROPERTY control='_PresetInspectorView' name='colours' id='4' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='5' value='grey60'
PROPERTY control='_PresetInspectorView' name='colours' id='6' value='TagBG_OFF'
PROPERTY control='_PresetInspectorView' name='colours' id='7' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='8' value='greyA0'
PROPERTY control='_PresetInspectorView' name='colours' id='9' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='10' value='PIV-TitleText'
PROPERTY control='_PresetInspectorView' name='colours' id='11' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='12' value='grey60'
PROPERTY control='_PresetInspectorView' name='colours' id='13' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='14' value='greyA0'
PROPERTY control='_PresetInspectorView' name='colours' id='15' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='16' value='invisible'
PROPERTY control='_PresetInspectorView' name='colours' id='17' value='TagBG_OFF'
PROPERTY control='_PresetInspectorView' name='graphics' id='0' value='none'
PROPERTY control='_PresetInspectorView' name='graphics' id='1' value='none'
PROPERTY control='_PresetInspectorView' name='graphics' id='2' value='none'
PARAMETER control='_PresetInspectorView' port='Name' module='PCore' parameter='GFile'
PARAMETER control='_PresetInspectorView' port='Path' module='PCore' parameter='PFold'
PARAMETER control='_PresetInspectorView' port='Author' module='PCore' parameter='MetaA'
PARAMETER control='_PresetInspectorView' port='Description' module='PCore' parameter='MetaD'
PARAMETER control='_PresetInspectorView' port='Usage' module='PCore' parameter='MetaH'
PARAMETER control='_PresetInspectorView' port='Category' module='PCore' parameter='MetaCat'
PARAMETER control='_PresetInspectorView' port='Features' module='PCore' parameter='MetaF'
PARAMETER control='_PresetInspectorView' port='Character' module='PCore' parameter='MetaCha'*/


PROPERTY control='PatchBrowser' name='columns' id='0' value='3'
PROPERTY control='PatchBrowser' name='spacing' id='0' value='4.00'
PROPERTY control='PatchBrowser' name='margin H' id='0' value='2.00'
PROPERTY control='PatchBrowser' name='margin V' id='0' value='2.00'
PROPERTY control='_PresetManagerStack' name='align (non orientation)' id='0' value='left'
PROPERTY control='_PresetManagerStack' name='margin H' id='0' value='2.00'
PROPERTY control='_SearchStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_SearchStack' name='margin H' id='0' value='8.00'
PROPERTY control='_SearchStack' name='margin V' id='0' value='6.00'
PROPERTY control='_SearchTextInput' name='FontSize' id='0' value='12.00'
PROPERTY control='_SearchTextInput' name='FontAlignment' id='0' value='left'
PROPERTY control='_SearchTextInput' name='text truncation' id='0' value='left'
PROPERTY control='_SearchTextInput' name='empty string replace' id='0' value='Search...'
PROPERTY control='_DisplayRootStack' name='orientation' id='0' value='horizontal'
PROPERTY control='_DisplayRootStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_DisplayRootStack' name='spacing' id='0' value='2.00'
PROPERTY control='_DisplayRootStack' name='Weight H' id='0' value='0.00'
PROPERTY control='_DisplayRootStack' name='Weight V' id='0' value='0.00'
PROPERTY control='_FolderUpButton' name='ActionID' id='1' value='666F6C55'
PROPERTY control='_DisplayPathLabel' name='FontSize' id='0' value='12.00'
PROPERTY control='_DisplayPathLabel' name='FontAlignment' id='0' value='left'
PROPERTY control='_DisplayPathLabel' name='clickThrough' id='0' value='YES'
PROPERTY control='_ClearFolderButton' name='ActionID' id='1' value='636C6546'
PROPERTY control='_PresetManagerFrameStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetManagerFrameStack' name='margin V' id='0' value='5.00'
PROPERTY control='_PresetManagerHeaderStack' name='orientation' id='0' value='horizontal'
PROPERTY control='_PresetManagerHeaderStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetManagerHeaderStack' name='Weight H' id='0' value='0.00'
PROPERTY control='_PresetManagerHeaderStack' name='Weight V' id='0' value='0.00'
PROPERTY control='_PresetSelectorStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetSelectorStack' name='margin H' id='0' value='5.00'
PROPERTY control='_RestoreStack' name='orientation' id='0' value='horizontal'
PROPERTY control='_RestoreStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_RestoreStack' name='spacing' id='0' value='4.00'
PROPERTY control='_PresetSelector' name='Weight H' id='0' value='128.00'
PROPERTY control='_RestoreButton' name='ActionID' id='1' value='72657350'
PROPERTY control='_RestoreLabel' name='FontSize' id='0' value='12.00'
PROPERTY control='_RestoreLabel' name='FontAlignment' id='0' value='left'
PROPERTY control='_PresetInspectorStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetInspectorStack' name='margin H' id='0' value='5.00'
PROPERTY control='_PresetInspectorHeaderStack' name='orientation' id='0' value='horizontal'
PROPERTY control='_PresetInspectorHeaderStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetInspectorHeaderStack' name='spacing' id='0' value='4.00'
PROPERTY control='_PresetInspectorHeaderStack' name='Resize Type H' id='0' value='Flexible'
PROPERTY control='_PresetInspectorInfoLabel' name='FontSize' id='0' value='12.00'
PROPERTY control='_PresetInspectorInfoLabel' name='FontAlignment' id='0' value='left'
PROPERTY control='_PresetInspectorView' name='tag font size' id='0' value='10.00'
PROPERTY control='_PresetInspectorView' name='content font size' id='0' value='10.00'
PROPERTY control='_PresetInspectorView' name='Weight V' id='0' value='64.00'
PROPERTY control='_TagFilterFrameStack' name='align (non orientation)' id='0' value='left'
PROPERTY control='_TagFilterFrameStack' name='margin H' id='0' value='0.00'
PROPERTY control='_TagFilterFrameStack' name='margin V' id='0' value='5.00'
PROPERTY control='_TagFilterView' name='tag item spacing' id='0' value='5.00'
PROPERTY control='_TagFilterView' name='tag font size' id='0' value='10.00'
PROPERTY control='_TagFilterView' name='header triangle position' id='0' value='right'
PROPERTY control='_TagFilterView' name='header font v offset' id='0' value='-3.00'
PROPERTY control='_TagFilterView' name='margin H' id='0' value='5.00'
PROPERTY control='_TagFilterView' name='margin V' id='0' value='5.00'


CONTROL type='Button On-Off' name='Button BrowserTagPanel' bounds='1120.00 69.00 24.00 24.00' parent='Pane PatchBrowserWindow' layerMask='1'
PROPERTY control='Button BrowserTagPanel' name='colours' id='0' value='none'
PROPERTY control='Button BrowserTagPanel' name='colours' id='1' value='none'
PROPERTY control='Button BrowserTagPanel' name='colours' id='2' value='none'
PROPERTY control='Button BrowserTagPanel' name='colours' id='3' value='none'
PROPERTY control='Button BrowserTagPanel' name='colours' id='4' value='none'
PROPERTY control='Button BrowserTagPanel' name='graphics' id='0' value='none'
PROPERTY control='Button BrowserTagPanel' name='graphics' id='1' value='none'
PROPERTY control='Button BrowserTagPanel' name='graphics' id='2' value='none'
PROPERTY control='Button BrowserTagPanel' name='graphics' id='3' value='none'

/*1.4 browser patch end*/

This results in new browser with old patch info.

3 cols with info on the right

Another idea is to place information panel on the right.

/*v1.4 Tag Browser Patchwork by plugmon.jp*/
COLOUR name='BrowserColor_5' rgba='fafafa55'
COLOUR name='BrowserColor_A' rgba='fafafaAA'
COLOUR name='PM_Search_BG' rgba='352D2Bff'
COLOUR name='PB_ScanBG_off' rgba='40'
COLOUR name='PB_ScanTXT_off' rgba='272c30ff'
COLOUR name='PB_ScanBG_on' rgba='92352eff'
COLOUR name='PB_ScanTXT_on' rgba='fff3e5ff'
COLOUR name='PB_ScanPROG_on' rgba='ffa26fc0'
COLOUR name='TagBG_OFF' rgba='444444aa'
COLOUR name='TagBG_OFF_ALT' rgba='313131aa'
COLOUR name='TagBG_ON' rgba='F6524A77'
COLOUR name='TagText_ON' rgba='ff3311FF'
COLOUR name='TagText_OFF' rgba='ffffff66'
COLOUR name='PIV-TitleText' rgba='9f3533ff'

CONTROL type='PresetBrowser' name='PatchBrowser' bounds='10.00 35.00 1190.00 600.00' parent='Pane WindowBlock' layerMask='1'
PROPERTY control='PatchBrowser' name='colours' id='0' value='none'
PROPERTY control='PatchBrowser' name='colours' id='1' value='none'
PROPERTY control='PatchBrowser' name='colours' id='2' value='PB_ScanBG_off'
PROPERTY control='PatchBrowser' name='colours' id='3' value='none'
PROPERTY control='PatchBrowser' name='colours' id='4' value='PB_ScanTXT_off'
PROPERTY control='PatchBrowser' name='colours' id='5' value='none'
PROPERTY control='PatchBrowser' name='colours' id='6' value='PB_ScanBG_on'
PROPERTY control='PatchBrowser' name='colours' id='7' value='none'
PROPERTY control='PatchBrowser' name='colours' id='8' value='PB_ScanTXT_on'
PROPERTY control='PatchBrowser' name='colours' id='9' value='PB_ScanPROG_on'
PROPERTY control='PatchBrowser' name='graphics' id='0' value='none'

CONTROL type='Layout-Stack' name='_PresetManagerStack' bounds='0.00 0.00 210.00 550.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_PresetManagerStack' name='colours' id='0' value='none'
PROPERTY control='_PresetManagerStack' name='colours' id='1' value='none'
PROPERTY control='_PresetManagerStack' name='graphics' id='0' value='none'

CONTROL type='Layout-Stack' name='_PresetManagerHeaderStack' bounds='2.00 0.00 210.00 32.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_PresetManagerHeaderStack' name='colours' id='0' value='none'
PROPERTY control='_PresetManagerHeaderStack' name='colours' id='1' value='none'
PROPERTY control='_PresetManagerHeaderStack' name='graphics' id='0' value='none'

CONTROL type='Button On-Off' name='_DirectoryButton' bounds='18.00 10.00 98.00 21.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_DirectoryButton' name='colours' id='0' value='invisible'
PROPERTY control='_DirectoryButton' name='colours' id='1' value='none'
PROPERTY control='_DirectoryButton' name='colours' id='2' value='invisible'
PROPERTY control='_DirectoryButton' name='colours' id='3' value='none'
PROPERTY control='_DirectoryButton' name='colours' id='4' value='none'
PROPERTY control='_DirectoryButton' name='graphics' id='0' value='none'
PROPERTY control='_DirectoryButton' name='graphics' id='1' value='Tab-PBDirect'
PROPERTY control='_DirectoryButton' name='graphics' id='2' value='none'
PROPERTY control='_DirectoryButton' name='graphics' id='3' value='none'

CONTROL type='Button On-Off' name='_SearchButton' bounds='116.00 10.00 98.00 21.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_SearchButton' name='colours' id='0' value='invisible'
PROPERTY control='_SearchButton' name='colours' id='1' value='none'
PROPERTY control='_SearchButton' name='colours' id='2' value='invisible'
PROPERTY control='_SearchButton' name='colours' id='3' value='none'
PROPERTY control='_SearchButton' name='colours' id='4' value='none'
PROPERTY control='_SearchButton' name='graphics' id='0' value='none'
PROPERTY control='_SearchButton' name='graphics' id='1' value='Tab-PBTags'
PROPERTY control='_SearchButton' name='graphics' id='2' value='none'
PROPERTY control='_SearchButton' name='graphics' id='3' value='none'

PROPERTY control='_DirectoryButton' name='ActionID' id='1' value='70625344'
PROPERTY control='_SearchButton' name='ActionID' id='1' value='70625353'

CONTROL type='Layout-Stack' name='_SearchStack' bounds='0.00 32.00 228.00 32.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_SearchStack' name='colours' id='0' value='none'
PROPERTY control='_SearchStack' name='colours' id='1' value='none'
PROPERTY control='_SearchStack' name='graphics' id='0' value='none'

CONTROL type='TextInput' name='_SearchTextInput' bounds='0.00 6.00 210.00 24.00' parent='_SearchStack' layerMask='ffffffff'
PROPERTY control='_SearchTextInput' name='colours' id='0' value='PM_Search_BG'
PROPERTY control='_SearchTextInput' name='colours' id='1' value='PM_Search_BG'
PROPERTY control='_SearchTextInput' name='colours' id='2' value='grey'
PROPERTY control='_SearchTextInput' name='colours' id='3' value='BrowserColor_5'
PROPERTY control='_SearchTextInput' name='colours' id='4' value='trans white'
PROPERTY control='_SearchTextInput' name='colours' id='5' value='black'
PROPERTY control='_SearchTextInput' name='colours' id='6' value='white'
PROPERTY control='_SearchTextInput' name='graphics' id='0' value='none'
PROPERTY control='_SearchTextInput' name='graphics' id='1' value='none'

CONTROL type='Layout-Stack' name='_DisplayRootStack' bounds='2.00 36.00 195.00 32.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_DisplayRootStack' name='colours' id='0' value='none'
PROPERTY control='_DisplayRootStack' name='colours' id='1' value='none'
PROPERTY control='_DisplayRootStack' name='graphics' id='0' value='none'

CONTROL type='Button On-Off' name='_FolderUpButton' bounds='0.00 0.00 22.00 16.00' parent='_DisplayRootStack' layerMask='ffffffff'
PROPERTY control='_FolderUpButton' name='colours' id='0' value='none'
PROPERTY control='_FolderUpButton' name='colours' id='1' value='none'
PROPERTY control='_FolderUpButton' name='colours' id='2' value='none'
PROPERTY control='_FolderUpButton' name='colours' id='3' value='none'
PROPERTY control='_FolderUpButton' name='colours' id='4' value='none'
PROPERTY control='_FolderUpButton' name='graphics' id='0' value='RS-Up'
PROPERTY control='_FolderUpButton' name='graphics' id='1' value='none'
PROPERTY control='_FolderUpButton' name='graphics' id='2' value='none'
PROPERTY control='_FolderUpButton' name='graphics' id='3' value='none'

CONTROL type='Button On-Off' name='_ClearFolderButton' bounds='22.00 0.00 16.00 16.00' parent='_DisplayRootStack' layerMask='ffffffff'
PROPERTY control='_ClearFolderButton' name='colours' id='0' value='none'
PROPERTY control='_ClearFolderButton' name='colours' id='1' value='none'
PROPERTY control='_ClearFolderButton' name='colours' id='2' value='none'
PROPERTY control='_ClearFolderButton' name='colours' id='3' value='none'
PROPERTY control='_ClearFolderButton' name='colours' id='4' value='none'
PROPERTY control='_ClearFolderButton' name='graphics' id='0' value='RS-Delete'
PROPERTY control='_ClearFolderButton' name='graphics' id='1' value='none'
PROPERTY control='_ClearFolderButton' name='graphics' id='2' value='none'
PROPERTY control='_ClearFolderButton' name='graphics' id='3' value='none'

CONTROL type='Label' name='_DisplayPathLabel' bounds='54.00 0.00 170.00 24.00' parent='_DisplayRootStack' layerMask='ffffffff'
PROPERTY control='_DisplayPathLabel' name='colours' id='0' value='none'
PROPERTY control='_DisplayPathLabel' name='colours' id='1' value='Orange8080'
PROPERTY control='_DisplayPathLabel' name='graphics' id='0' value='none'
PROPERTY control='_DisplayPathLabel' name='labeltext' id='0' value='/'
PROPERTY control='_DisplayPathLabel' name='clickThrough' id='0' value='yes'
PROPERTY control='_DisplayPathLabel' name='FontSize' id='0' value='11.00'

CONTROL type='Layout-Stack' name='_PresetManagerFrameStack' bounds='0.00 40.00 235.00 300.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_PresetManagerFrameStack' name='colours' id='0' value='none'
PROPERTY control='_PresetManagerFrameStack' name='colours' id='1' value='none'
PROPERTY control='_PresetManagerFrameStack' name='graphics' id='0' value='none'

CONTROL type='PresetManager' name='_PresetManagerView' bounds='0.00 0.00 235.00 290.00' parent='_PresetManagerFrameStack' layerMask='ffffffff'
PROPERTY control='_PresetManagerView' name='colours' id='0' value='none'
PROPERTY control='_PresetManagerView' name='colours' id='1' value='grey'
PROPERTY control='_PresetManagerView' name='colours' id='2' value='grey'
PROPERTY control='_PresetManagerView' name='colours' id='3' value='black'
PROPERTY control='_PresetManagerView' name='colours' id='4' value='invisible'
PROPERTY control='_PresetManagerView' name='colours' id='5' value='BrowserColor_5'
PROPERTY control='_PresetManagerView' name='graphics' id='0' value='none'
PROPERTY control='_PresetManagerView' name='labeltext' id='0' value='PresetManager 34887'
PROPERTY control='_PresetManagerView' name='labelTextAlignment' id='0' value='0'
PROPERTY control='_PresetManagerView' name='labelTextVAlignment' id='0' value='1'
PROPERTY control='_PresetManagerView' name='labelTextSize' id='0' value='11.00'
PROPERTY control='_PresetManagerView' name='labelTextVOffset' id='0' value='-2.00'

CONTROL type='Layout-Stack' name='_TagFilterFrameStack' bounds='0.00 64.00 235.00 300.00' parent='_PresetManagerStack' layerMask='ffffffff'
PROPERTY control='_TagFilterFrameStack' name='colours' id='0' value='none'
PROPERTY control='_TagFilterFrameStack' name='colours' id='1' value='none'
PROPERTY control='_TagFilterFrameStack' name='graphics' id='0' value='none'

CONTROL type='TagFilter' name='_TagFilterView' bounds='5.00 5.00 235.00 290.00' parent='_TagFilterFrameStack' layerMask='ffffffff'
PROPERTY control='_TagFilterView' name='colours' id='0' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='1' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='2' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='3' value='grey' /*Subtitles*/
PROPERTY control='_TagFilterView' name='colours' id='4' value='none'
PROPERTY control='_TagFilterView' name='colours' id='5' value='grey' /*Subtitle Borders*/
PROPERTY control='_TagFilterView' name='colours' id='6' value='TagBG_OFF'
PROPERTY control='_TagFilterView' name='colours' id='7' value='TagBG_OFF' /*Tag Off*/
PROPERTY control='_TagFilterView' name='colours' id='8' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='9' value='TagText_OFF' /*tag text itself*/
PROPERTY control='_TagFilterView' name='colours' id='10' value='TagBG_ON' /*Selected Tag BG*/
PROPERTY control='_TagFilterView' name='colours' id='11' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='12' value='TagText_ON' /*Selected Text Color*/
PROPERTY control='_TagFilterView' name='colours' id='13' value='none'
PROPERTY control='_TagFilterView' name='colours' id='14' value='none'
PROPERTY control='_TagFilterView' name='colours' id='15' value='TagBG_OFF'
PROPERTY control='_TagFilterView' name='colours' id='16' value='none'
PROPERTY control='_TagFilterView' name='colours' id='17' value='invisible'
PROPERTY control='_TagFilterView' name='colours' id='18' value='TagBG_OFF'
PROPERTY control='_TagFilterView' name='colours' id='19' value='TagBG_OFF_ALT'
PROPERTY control='_TagFilterView' name='colours' id='20' value='grey'
PROPERTY control='_TagFilterView' name='colours' id='21' value='invisible' /*Selected Category Border*/
PROPERTY control='_TagFilterView' name='colours' id='22' value='white'
PROPERTY control='_TagFilterView' name='colours' id='23' value='PIV-TitleText'
PROPERTY control='_TagFilterView' name='graphics' id='0' value='none'
PROPERTY control='_TagFilterView' name='graphics' id='1' value='none'
PROPERTY control='_TagFilterView' name='graphics' id='2' value='none'
PROPERTY control='_TagFilterView' name='graphics' id='3' value='CTag-Delete'
PROPERTY control='_TagFilterView' name='graphics' id='4' value='Header-Open'
PROPERTY control='_TagFilterView' name='graphics' id='5' value='Header-Close'


CONTROL type='Button On-Off' name='_RestoreButton' bounds='340.00 10.00 55.00 18.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_RestoreButton' name='colours' id='0' value='none'
PROPERTY control='_RestoreButton' name='colours' id='1' value='BrowserColor_5'
PROPERTY control='_RestoreButton' name='colours' id='2' value='grey'
PROPERTY control='_RestoreButton' name='colours' id='3' value='none'
PROPERTY control='_RestoreButton' name='colours' id='4' value='none'
PROPERTY control='_RestoreButton' name='graphics' id='0' value='none'
PROPERTY control='_RestoreButton' name='graphics' id='1' value='none'
PROPERTY control='_RestoreButton' name='graphics' id='2' value='none'
PROPERTY control='_RestoreButton' name='graphics' id='3' value='none'

CONTROL type='Label' name='_RestoreLabel' bounds='64.00 0.00 360.00 18.00' parent='_RestoreButton' layerMask='ffffffff'
PROPERTY control='_RestoreLabel' name='colours' id='0' value='none'
PROPERTY control='_RestoreLabel' name='colours' id='1' value='grey'
PROPERTY control='_RestoreLabel' name='graphics' id='0' value='none'
PROPERTY control='_RestoreLabel' name='labeltext' id='0' value='initialize'

CONTROL type='StateButton' name='_DatabaseUpdateIndicator' bounds='970.00 10.00 60.00 20.00' parent='PatchBrowser' layerMask='ffffffff'

CONTROL type='PresetSelector' name='_PresetSelector' bounds='255.00 38.00 570.00 572.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_PresetSelector' name='colours' id='0' value='none'
PROPERTY control='_PresetSelector' name='colours' id='1' value='grey'
PROPERTY control='_PresetSelector' name='colours' id='2' value='grey'
PROPERTY control='_PresetSelector' name='colours' id='3' value='black'
PROPERTY control='_PresetSelector' name='colours' id='4' value='invisible'
PROPERTY control='_PresetSelector' name='colours' id='5' value='BrowserColor_5'
PROPERTY control='_PresetSelector' name='colours' id='6' value='none'
PROPERTY control='_PresetSelector' name='colours' id='7' value='none'
PROPERTY control='_PresetSelector' name='colours' id='8' value='none'
PROPERTY control='_PresetSelector' name='colours' id='9' value='none'
PROPERTY control='_PresetSelector' name='colours' id='10' value='none'
PROPERTY control='_PresetSelector' name='colours' id='11' value='none'
PROPERTY control='_PresetSelector' name='colours' id='12' value='none'
PROPERTY control='_PresetSelector' name='colours' id='13' value='none'
PROPERTY control='_PresetSelector' name='graphics' id='0' value='none'
PROPERTY control='_PresetSelector' name='graphics' id='1' value='JunkIcon'
PROPERTY control='_PresetSelector' name='graphics' id='2' value='FavIcon-1'
PROPERTY control='_PresetSelector' name='graphics' id='3' value='FavIcon-2'
PROPERTY control='_PresetSelector' name='graphics' id='4' value='FavIcon-3'
PROPERTY control='_PresetSelector' name='graphics' id='5' value='FavIcon-4'
PROPERTY control='_PresetSelector' name='graphics' id='6' value='FavIcon-5'
PROPERTY control='_PresetSelector' name='graphics' id='7' value='FavIcon-6'
PROPERTY control='_PresetSelector' name='graphics' id='8' value='FavIcon-7'
PROPERTY control='_PresetSelector' name='graphics' id='9' value='FavIcon-8'
PROPERTY control='_PresetSelector' name='labeltext' id='0' value='PresetSelector 34547'
PROPERTY control='_PresetSelector' name='mLabelTextAlignment' id='0' value='0'
PROPERTY control='_PresetSelector' name='mLabelTextVAlignment' id='0' value='1'
PROPERTY control='_PresetSelector' name='mLabelTextSize' id='0' value='11.00'
PROPERTY control='_PresetSelector' name='mLabelTextVOffset' id='0' value='-2.00'
PROPERTY control='_PresetSelector' name='Columns' id='1' value='3'
PROPERTY control='_PresetSelector' name='ScrollType' id='1' value='horizontal'


CONTROL type='Pane' name='_PresetInspectorStack' bounds='830.00 30.00 220.00 650.00' parent='PatchBrowser' layerMask='ffffffff'
PROPERTY control='_PresetInspectorStack' name='colours' id='0' value='none'
PROPERTY control='_PresetInspectorStack' name='colours' id='1' value='none'
PROPERTY control='_PresetInspectorStack' name='graphics' id='0' value='none'

CONTROL type='Layout-Stack' name='_PresetInspectorHeaderStack' bounds='0.00 0.00 220.00 32.00' parent='_PresetInspectorStack' layerMask='ffffffff'
PROPERTY control='_PresetInspectorHeaderStack' name='colours' id='0' value='none'
PROPERTY control='_PresetInspectorHeaderStack' name='colours' id='1' value='none'
PROPERTY control='_PresetInspectorHeaderStack' name='graphics' id='0' value='none'

CONTROL type='Label' name='_PresetInspectorInfoLabel' bounds='0.00 10.00 82.00 12.00' parent='_PresetInspectorHeaderStack' layerMask='ffffffff'
PROPERTY control='_PresetInspectorInfoLabel' name='colours' id='0' value='none'
PROPERTY control='_PresetInspectorInfoLabel' name='colours' id='1' value='grey'
PROPERTY control='_PresetInspectorInfoLabel' name='graphics' id='0' value='none'
PROPERTY control='_PresetInspectorInfoLabel' name='labeltext' id='0' value='PRESET INFO'

CONTROL type='PresetInspector' name='_PresetInspectorView' bounds='0.00 32.00 220.00 550.00' parent='_PresetInspectorStack' layerMask='ffffffff'
PROPERTY control='_PresetInspectorView' name='colours' id='0' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='1' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='2' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='3' value='grey60'
PROPERTY control='_PresetInspectorView' name='colours' id='4' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='5' value='grey60'
PROPERTY control='_PresetInspectorView' name='colours' id='6' value='TagBG_OFF'
PROPERTY control='_PresetInspectorView' name='colours' id='7' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='8' value='greyA0'
PROPERTY control='_PresetInspectorView' name='colours' id='9' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='10' value='PIV-TitleText'
PROPERTY control='_PresetInspectorView' name='colours' id='11' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='12' value='grey60'
PROPERTY control='_PresetInspectorView' name='colours' id='13' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='14' value='greyA0'
PROPERTY control='_PresetInspectorView' name='colours' id='15' value='none'
PROPERTY control='_PresetInspectorView' name='colours' id='16' value='invisible'
PROPERTY control='_PresetInspectorView' name='colours' id='17' value='TagBG_OFF'
PROPERTY control='_PresetInspectorView' name='graphics' id='0' value='none'
PROPERTY control='_PresetInspectorView' name='graphics' id='1' value='none'
PROPERTY control='_PresetInspectorView' name='graphics' id='2' value='none'
PARAMETER control='_PresetInspectorView' port='Name' module='PCore' parameter='GFile'
PARAMETER control='_PresetInspectorView' port='Path' module='PCore' parameter='PFold'
PARAMETER control='_PresetInspectorView' port='Author' module='PCore' parameter='MetaA'
PARAMETER control='_PresetInspectorView' port='Description' module='PCore' parameter='MetaD'
PARAMETER control='_PresetInspectorView' port='Usage' module='PCore' parameter='MetaH'
PARAMETER control='_PresetInspectorView' port='Category' module='PCore' parameter='MetaCat'
PARAMETER control='_PresetInspectorView' port='Features' module='PCore' parameter='MetaF'
PARAMETER control='_PresetInspectorView' port='Character' module='PCore' parameter='MetaCha'

CONTROL type='Rack' name='Rack 11349' bounds='108.00 516.00 228.00 192.00' parent='Pane PatchBrowserWindow' layerMask='1'
PROPERTY control='Rack 11349' name='colours' id='0' value='none'
PROPERTY control='Rack 11349' name='colours' id='1' value='none'
PROPERTY control='Rack 11349' name='colours' id='2' value='invisible'
PROPERTY control='Rack 11349' name='colours' id='3' value='VoltaDisplayGrey'
PROPERTY control='Rack 11349' name='graphics' id='0' value='none'
PROPERTY control='Rack 11349' name='layer' id='0' value='RackUnit 1'
PROPERTY control='Rack 11349' name='allowSwapping' id='0' value='NO'

CONTROL type='Pane' name='Pane 11350' bounds='6.00 0.00 204.00 53.00' parent='Rack 11349' layerMask='1'
PROPERTY control='Pane 11350' name='colours' id='0' value='none'
PROPERTY control='Pane 11350' name='colours' id='1' value='none'
PROPERTY control='Pane 11350' name='colours' id='2' value='none'
PROPERTY control='Pane 11350' name='colours' id='3' value='none'
PROPERTY control='Pane 11350' name='graphics' id='0' value='none'
PROPERTY control='Pane 11350' name='layer' id='0' value='Layer 1'

CONTROL type='Label' name='Label 11351' bounds='0.00 4.00 204.00 26.00' parent='Pane 11350' layerMask='1'
PROPERTY control='Label 11351' name='colours' id='0' value='none'
PROPERTY control='Label 11351' name='colours' id='1' value='VoltaDisplayGrey'
PROPERTY control='Label 11351' name='graphics' id='0' value='none'
PROPERTY control='Label 11351' name='labeltext' id='0' value='Label 11351'
PROPERTY control='Label 11351' name='metaDisplay' id='0' value='yes'



PROPERTY control='PatchBrowser' name='columns' id='0' value='3'
PROPERTY control='PatchBrowser' name='spacing' id='0' value='4.00'
PROPERTY control='PatchBrowser' name='margin H' id='0' value='2.00'
PROPERTY control='PatchBrowser' name='margin V' id='0' value='2.00'
PROPERTY control='_PresetManagerStack' name='align (non orientation)' id='0' value='left'
PROPERTY control='_PresetManagerStack' name='margin H' id='0' value='2.00'
PROPERTY control='_SearchStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_SearchStack' name='margin H' id='0' value='8.00'
PROPERTY control='_SearchStack' name='margin V' id='0' value='6.00'
PROPERTY control='_SearchTextInput' name='FontSize' id='0' value='12.00'
PROPERTY control='_SearchTextInput' name='FontAlignment' id='0' value='left'
PROPERTY control='_SearchTextInput' name='text truncation' id='0' value='left'
PROPERTY control='_SearchTextInput' name='empty string replace' id='0' value='Search...'
PROPERTY control='_DisplayRootStack' name='orientation' id='0' value='horizontal'
PROPERTY control='_DisplayRootStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_DisplayRootStack' name='spacing' id='0' value='2.00'
PROPERTY control='_DisplayRootStack' name='Weight H' id='0' value='0.00'
PROPERTY control='_DisplayRootStack' name='Weight V' id='0' value='0.00'
PROPERTY control='_FolderUpButton' name='ActionID' id='1' value='666F6C55'
PROPERTY control='_DisplayPathLabel' name='FontSize' id='0' value='12.00'
PROPERTY control='_DisplayPathLabel' name='FontAlignment' id='0' value='left'
PROPERTY control='_DisplayPathLabel' name='clickThrough' id='0' value='YES'
PROPERTY control='_ClearFolderButton' name='ActionID' id='1' value='636C6546'
PROPERTY control='_PresetManagerFrameStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetManagerFrameStack' name='margin V' id='0' value='5.00'
PROPERTY control='_PresetManagerHeaderStack' name='orientation' id='0' value='horizontal'
PROPERTY control='_PresetManagerHeaderStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetManagerHeaderStack' name='Weight H' id='0' value='0.00'
PROPERTY control='_PresetManagerHeaderStack' name='Weight V' id='0' value='0.00'
PROPERTY control='_PresetSelectorStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetSelectorStack' name='margin H' id='0' value='5.00'
PROPERTY control='_RestoreStack' name='orientation' id='0' value='horizontal'
PROPERTY control='_RestoreStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_RestoreStack' name='spacing' id='0' value='4.00'
PROPERTY control='_PresetSelector' name='Weight H' id='0' value='128.00'
PROPERTY control='_RestoreButton' name='ActionID' id='1' value='72657350'
PROPERTY control='_RestoreLabel' name='FontSize' id='0' value='12.00'
PROPERTY control='_RestoreLabel' name='FontAlignment' id='0' value='left'
PROPERTY control='_PresetInspectorStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetInspectorStack' name='margin H' id='0' value='5.00'
PROPERTY control='_PresetInspectorHeaderStack' name='orientation' id='0' value='horizontal'
PROPERTY control='_PresetInspectorHeaderStack' name='align (non orientation)' id='0' value='center'
PROPERTY control='_PresetInspectorHeaderStack' name='spacing' id='0' value='4.00'
PROPERTY control='_PresetInspectorHeaderStack' name='Resize Type H' id='0' value='Flexible'
PROPERTY control='_PresetInspectorInfoLabel' name='FontSize' id='0' value='12.00'
PROPERTY control='_PresetInspectorInfoLabel' name='FontAlignment' id='0' value='left'
PROPERTY control='_PresetInspectorView' name='tag font size' id='0' value='10.00'
PROPERTY control='_PresetInspectorView' name='content font size' id='0' value='10.00'
PROPERTY control='_PresetInspectorView' name='Weight V' id='0' value='64.00'
PROPERTY control='_TagFilterFrameStack' name='align (non orientation)' id='0' value='left'
PROPERTY control='_TagFilterFrameStack' name='margin H' id='0' value='0.00'
PROPERTY control='_TagFilterFrameStack' name='margin V' id='0' value='5.00'
PROPERTY control='_TagFilterView' name='tag item spacing' id='0' value='5.00'
PROPERTY control='_TagFilterView' name='tag font size' id='0' value='10.00'
PROPERTY control='_TagFilterView' name='header triangle position' id='0' value='right'
PROPERTY control='_TagFilterView' name='header font v offset' id='0' value='-3.00'
PROPERTY control='_TagFilterView' name='margin H' id='0' value='5.00'
PROPERTY control='_TagFilterView' name='margin V' id='0' value='5.00'


CONTROL type='Button On-Off' name='Button BrowserTagPanel' bounds='1120.00 69.00 24.00 24.00' parent='Pane PatchBrowserWindow' layerMask='1'
PROPERTY control='Button BrowserTagPanel' name='colours' id='0' value='none'
PROPERTY control='Button BrowserTagPanel' name='colours' id='1' value='none'
PROPERTY control='Button BrowserTagPanel' name='colours' id='2' value='none'
PROPERTY control='Button BrowserTagPanel' name='colours' id='3' value='none'
PROPERTY control='Button BrowserTagPanel' name='colours' id='4' value='none'
PROPERTY control='Button BrowserTagPanel' name='graphics' id='0' value='none'
PROPERTY control='Button BrowserTagPanel' name='graphics' id='1' value='none'
PROPERTY control='Button BrowserTagPanel' name='graphics' id='2' value='none'
PROPERTY control='Button BrowserTagPanel' name='graphics' id='3' value='none'

/*1.4 browser patch end*/

This will look like this:

Info panels on the left and right both… is not comfortable, but practically this is the best way to use space.

Of-course I could edit graphics to make it look perfectly compatible, but I’d rather not because I think it too much intervention for a commercial skin (Editing an image and re-distributing it may violate his copy rights).

AIKO is waiting for you

Also don’t forget that AIKO Theme is always waiting for you, fully updated. Do you know it now has original RED color version? You’ll love it!

My Feelings

Actually I really miss him😢 He is one of the very few people who make premium skins for U-he synths. Me, he, and who else? I hope he’ll be back.

Yuta Yoshimatsu

Ohayo. I'm a Japanese graphic and sound designer. I love u-he products and speak u-he's theming language as fluently as any man.

5 Comments

Leave a Reply
